API Layer
- Communication, Routing, and Update Distribution System

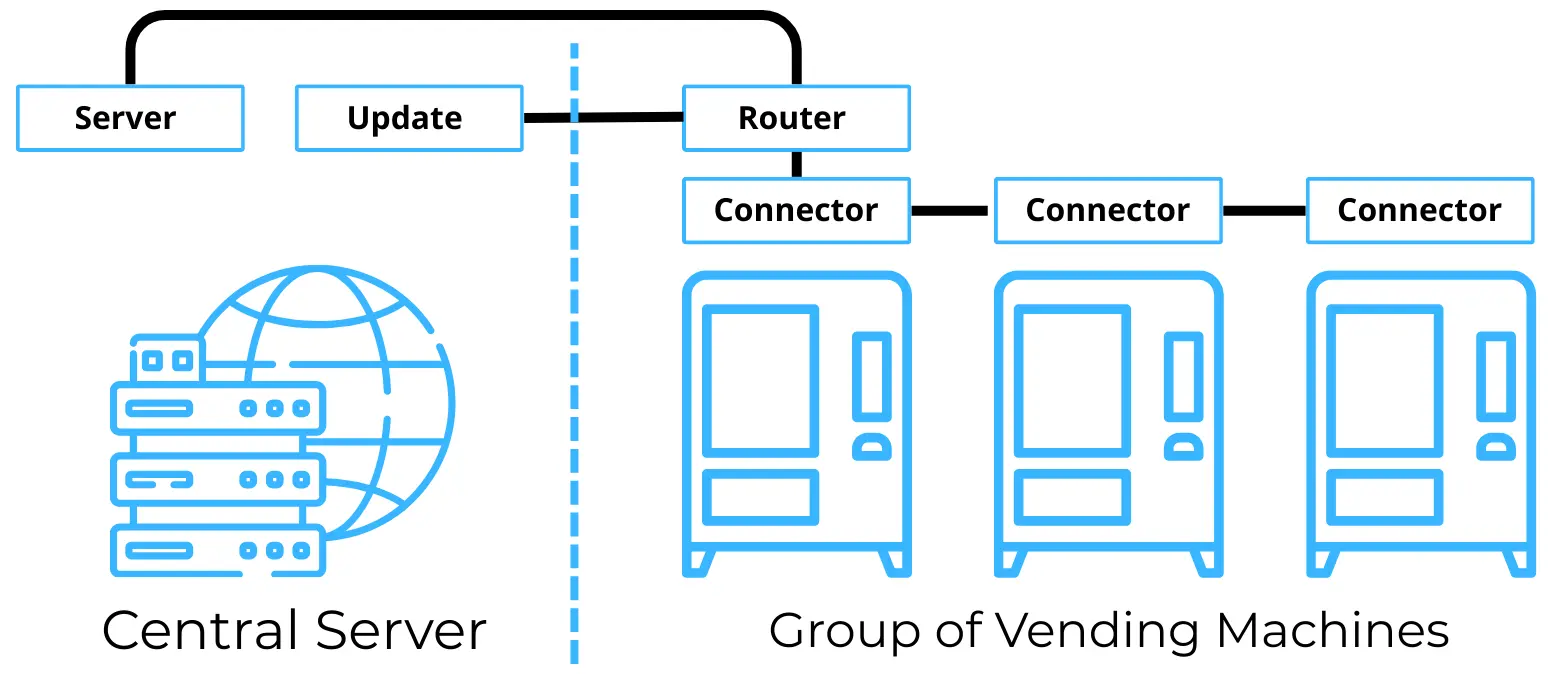

This project is a suite of three ASP.NET Core Web API applications designed to manage data exchange, request routing, and software update distribution across a network of vending machines and server systems. Together, they form the backbone of all inter-system communication, handling everything from data synchronization to machine configurations and update management. Developed entirely by me, this modular architecture ensures reliable connectivity even in complex environments involving isolated customer networks, multi-device deployments, or hybrid infrastructure (on-premise and cloud).
Tech Stack & Integration:
ASP.NET Core Web API / C# for backend services
PostgreSQL database with Entity Framework Core for data access and persistence
RESTful API architecture for clear, maintainable service interfaces
JSON-based payload exchange for consistency and compatibility
Token-Based Authentication using standard JWT (JSON Web Tokens) for secure, stateless client-server communication. This ensures authenticated access to endpoints and supports claims-based identity for permission handling.
The Connector app is responsible for processing all incoming data from external sources-either the main server or peer vending machines. It acts as the core data sync engine that validates, updates, or removes records such as:
Users, products, access restrictions
Transactions and audit logs
Machine configurations, layouts, and parameters
The logic ensures idempotent operations (e.g., avoiding duplicate records), version checks, and safe merging or overwriting of existing data. This service ensures every machine and server instance maintains consistent, accurate state.
TB RouterNetwork Bridging & Package Forwarding
The Router app handles intelligent data routing between isolated network environments. It's deployed in the main vending machine of a customer site and solves the challenge of bridging communication between:
Local vending machine groups (e.g., multiple devices at a customer site)
The main server, which may be hosted externally, on a separate subnet or in the cloud
Based on the direction of communication, it forwards packages (user data, transactions, product updates, etc.) either to a peer machine’s Connector or to the central server. This ensures seamless data flow even across segmented infrastructures.
TB UpdateVersion Check & Update Distribution
This service manages the delivery of software update packages to vending machines. It runs primarily on the main server and is also mirrored on the main vending machines within each location.
Machines periodically check in with their current software version
If updates are available, the server responds with a list of relevant packages
Vending machines can then download and install updates directly from the server
The update mechanism supports differential updates, version tracking, and distribution rules based on machine type or deployment role.
